Specifications
Board, mounting, delivery.
Fixed product specifications are below. Quantities, freight and price depend on your configuration and are itemised in your quote.
01
Board
| Standard formats | 4 × 4 ft and 4 × 8 ft (16 sq ft and 32 sq ft) |
|---|---|
| Custom sizes | On request |
| Orientation | 4 × 8 ft boards hang with the long edge horizontal or vertical |
| Edge treatment | Borderless — fabric wraps the face and the edges, with no frame or trim on the front |
| Overall thickness | 1 1/4 in — fabric, core, frame and back together |
| Weight | About 15 lb for a 4 × 8 ft board |
| Core | Rigid gatorboard (high-density foam core), 1/2 in thick |

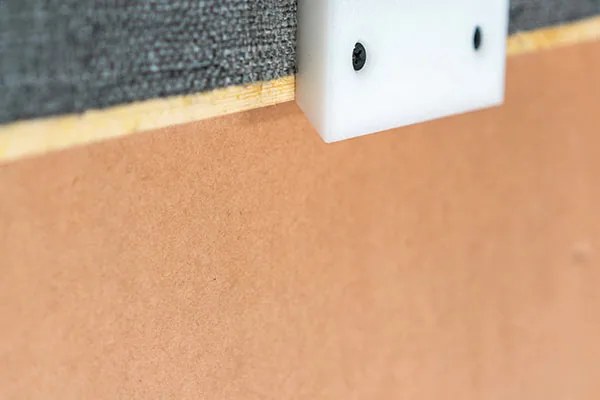

| Frame and back | Solid wood internal frame with a hardboard back panel. Neither is visible from the front. |
| Material | High-performance, high-durability fabric made for commercial and severe-duty use |
|---|---|
| Resistance | Water, soil and mildew resistant |
| Standard colours | Grey and black |
| Other colours | Other colours possible on request |
02
Mounting
Hanging the board on the wall and attaching work to the board are separate things. They are listed separately because they are installed and used separately.
| Method | French cleat |
|---|---|
| Supplied with each board | Two cleats and one rail per board |
| Wall types | Tell us whether you are fixing to drywall, stud or masonry; fixings are specified accordingly |
| Moving a board | Lifts off the rail and re-spaces along it. Moving to a different wall means installing a rail there. |
| Alignment | Boards can be set edge to edge so a run of panels reads as one continuous surface |
| Mounting height | Your choice. We confirm the clearance needed above the rail to lift a board on and off when we quote your configuration. |
| Installation | Can be arranged in the United States. Tell us your location and we will confirm. |
| Method | Pins pushed into the fabric face. No tape, no adhesive, nothing left on the wall behind. |
|---|---|
| Suited to | Paper: drawings, plots, prints, storyboard cards, photographs and lightweight references |
| Not suited to | Heavy material samples — stone, tile, thick timber or metal. These need a shelf or tray, not a pin. |
03
Ordering and delivery
| Made in | Los Angeles, California |
|---|---|
| Ships | Within the United States |
| Access | Tell us about lifts, stairs and loading. A 4 × 8 ft board is light, but it is still an 8 ft object to carry through a building. |
| Lead time | Typically 2–6 weeks, depending on board size and order size. Confirmed in writing with your quote. |
| Warranty | One year, standard |
| Pricing | Quoted per configuration and itemised: boards, mounting components, packing, freight and applicable taxes, with exclusions shown |
| Care and cleaning | Care guidance for the face fabric is provided on request |
04
Project documentation
This page covers the board as we build it. Acoustic, fire-performance, emissions and sustainability documentation for the assembled board is not published, and is not claimed.
If your project, campus or workplace specification calls for a particular standard or test report, name it in your quote request and we will tell you what is available before you build it into a submittal.
Ask about documentationNeed a figure that is not here?
Ask for it directly and we will tell you what we have.
